NBV Egg Light

NBV SERIES

Compact RGB Industrial Indicator

One Light. Three Colors. Instant Status.

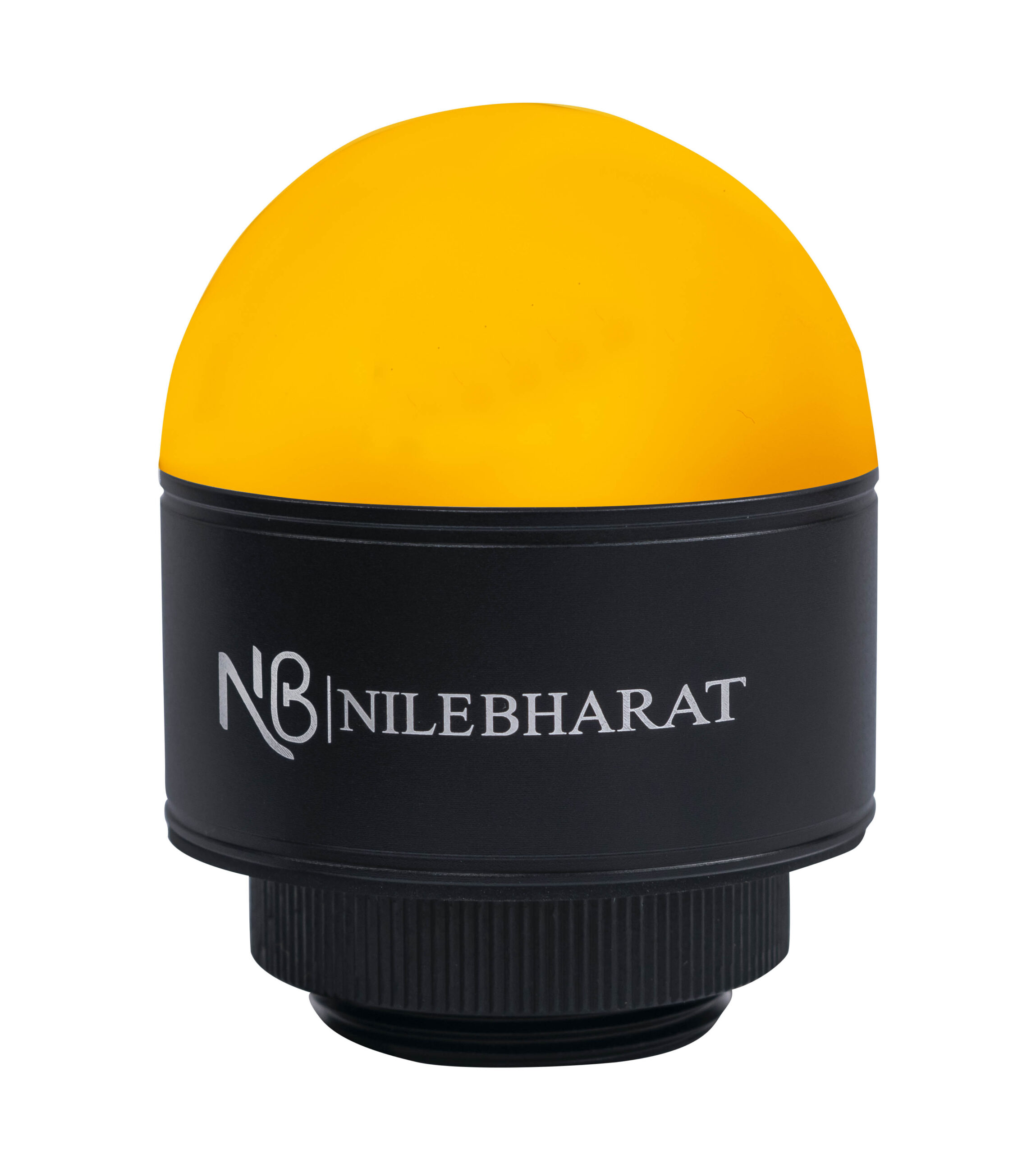

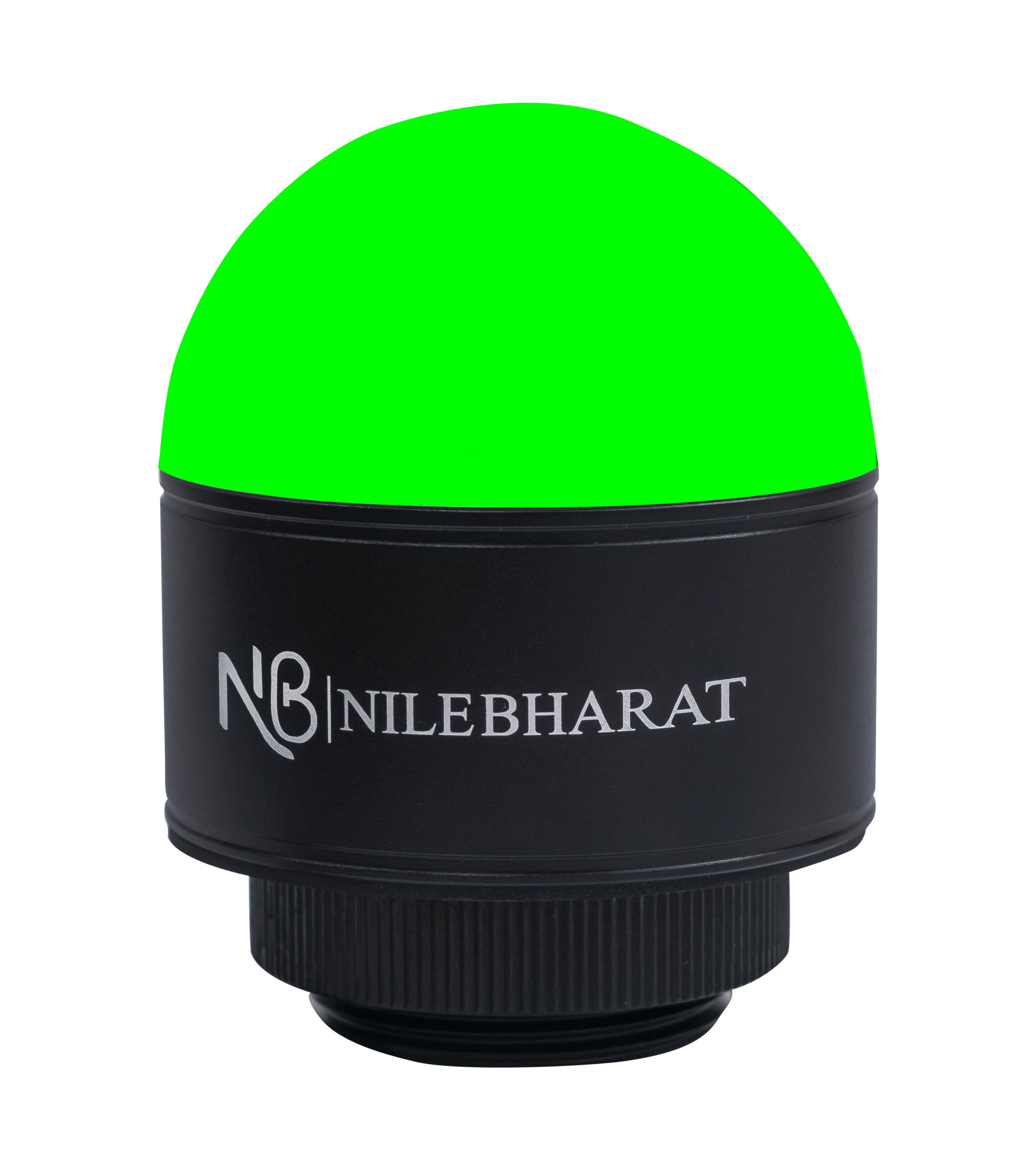

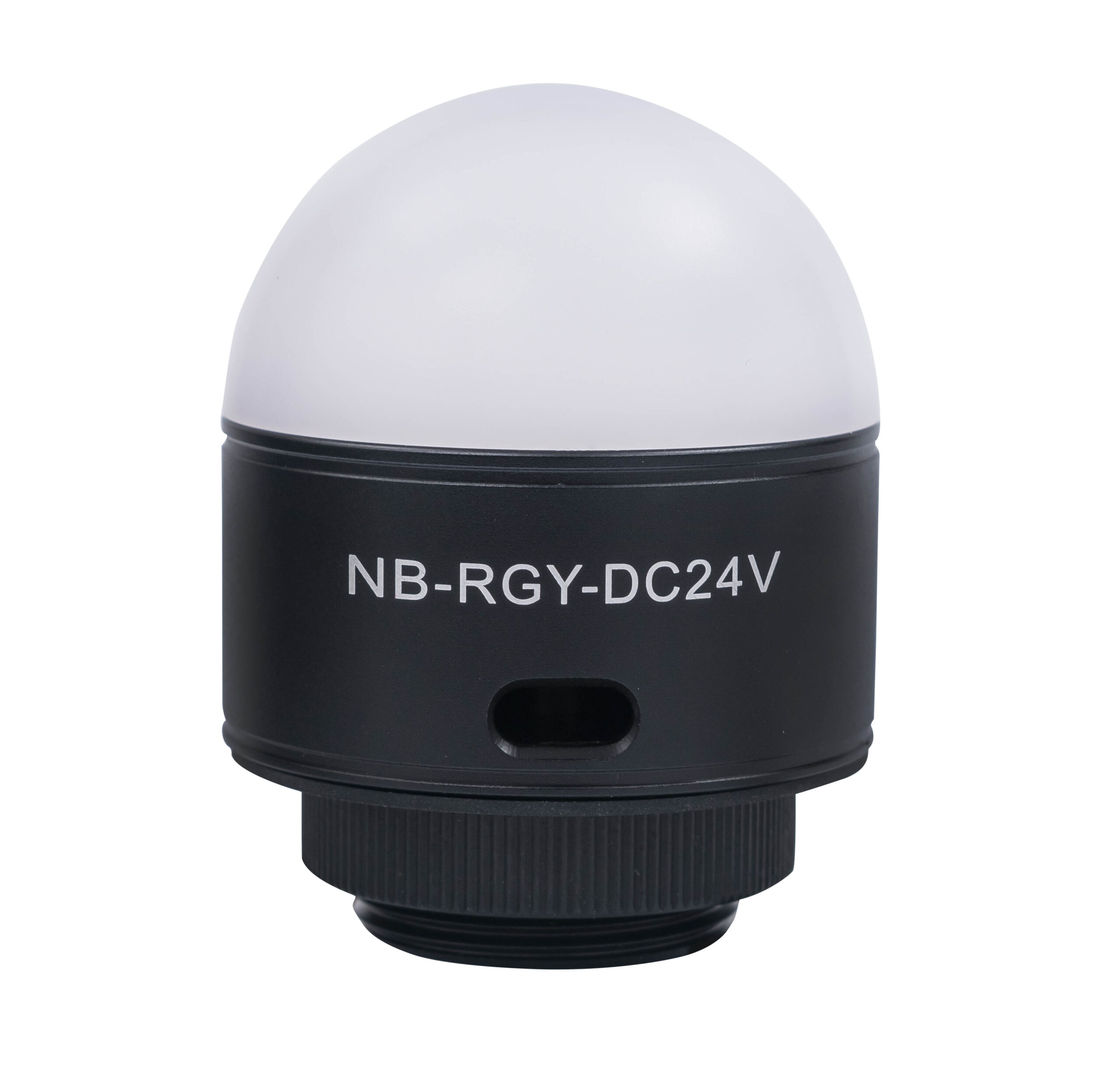

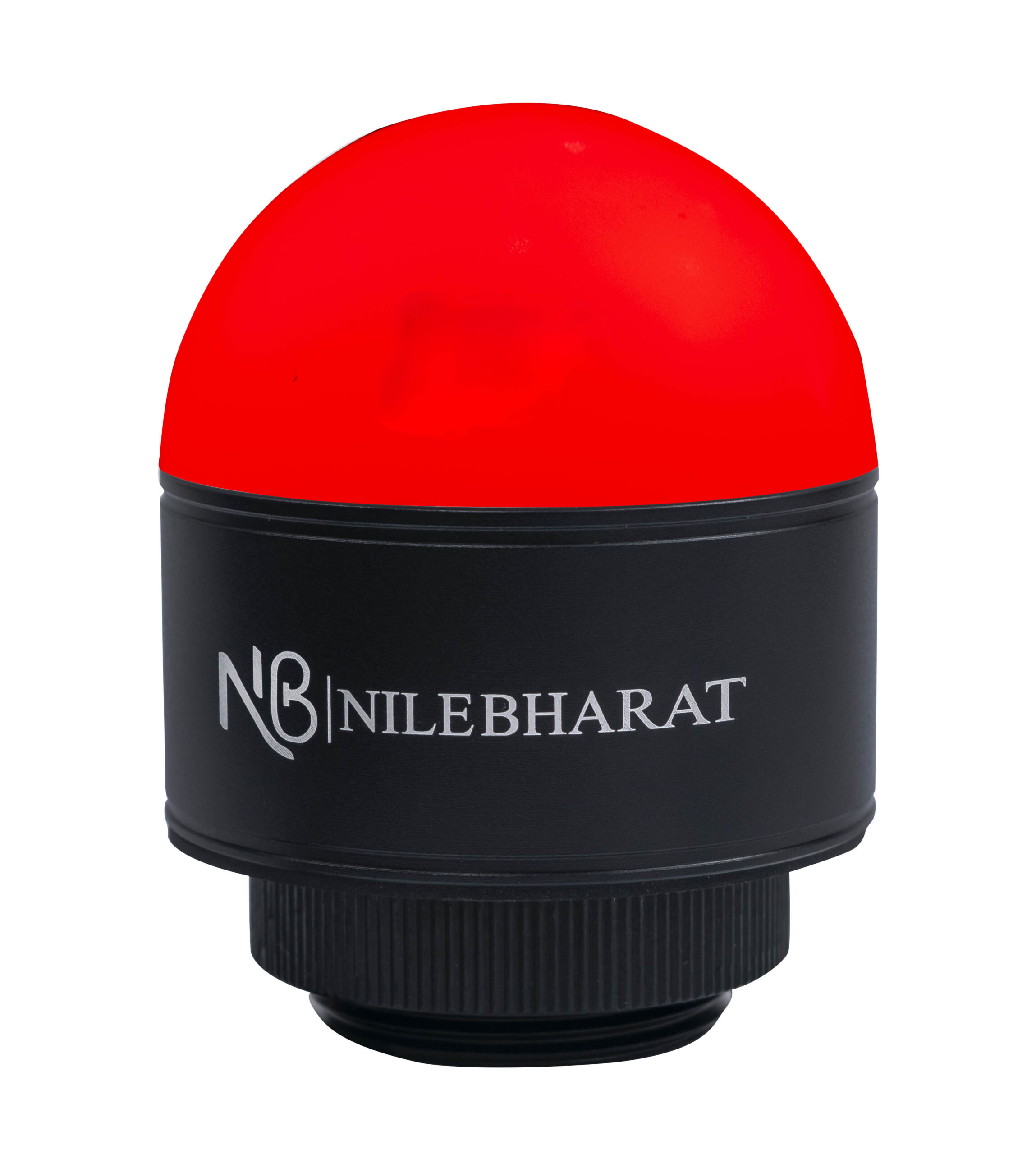

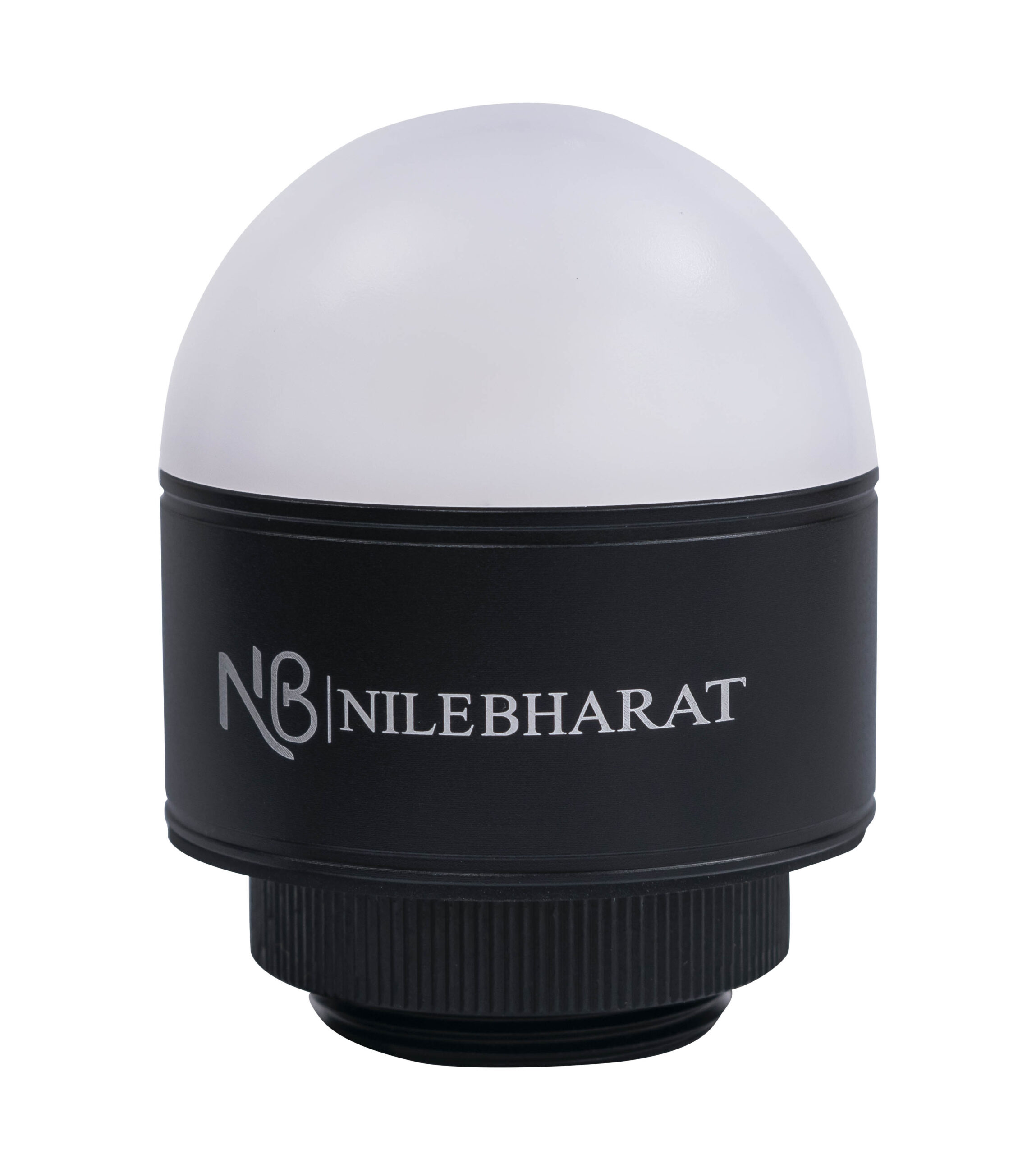

The Nile Bharat NBV Series RGB Indicator is a compact industrial signalling solution designed to display three essential machine-status colors – Red, Yellow and Green – through a single illuminated dome.

With its distinctive Ø50 mm compact design, bright visual indication and optional audible warning, NBV provides an elegant and space-saving alternative for machines where a conventional multi-layer signal tower is not required.

Designed for industrial machinery, automation systems, control panels and production equipment, the NBV makes machine status clear, simple and instantly recognizable.

ONE LIGHT. THREE COLORS.

🔴 RED | 🟡 YELLOW | 🟢 GREEN

🔴 RED – FAULT / STOP

🟡 YELLOW – WARNING / ATTENTION

🟢 GREEN – RUN / NORMAL

Body: Aluminium

Lens: PMMA

Diameter: Ø50 mm

Input Voltage: DC24V

Connection: NPN / PNP

Installation: Fixed by Screw / Threaded Installation

Operating Temperature: Below 60°C

LED Life: 50,000 Hours

Body Color: Black

Protection Rating: IP65

Compact Signalling. Powerful Communication.

View Nbv Egg Light Technical Datasheet
